Answer:
x = 30°
Explanation:

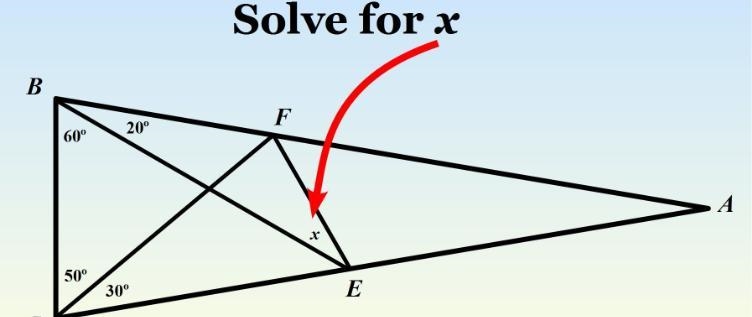

The given triangle is a mathematical problem called "Langley’s Adventitious Angles". It is a well-known problem in geometry that involves finding the measure of certain angles that arise incidentally when working with intersecting lines and shapes.
The original problem associated with Langley's Adventitious Angles is as follows:
- ∠B = ∠C = 80°
- Line CF, forming a 30° angle with AC, intersects AB at point F.
- Line BE, forming a 20° angle with AB, intersects AC at point E.
- Draw FE.
- Prove ∠BEF = 30°
In 1923, James Mercer devised a solution to this problem. His method entails introducing an additional point G on AC, thereby drawing two additional lines (BG and GF) and leveraging the fundamental concept that the sum of the interior angles of a triangle equals 180°. This approach is used to establish that several triangles formed within the larger triangle are all isosceles.
Draw a line segment BG at 20° to BC intersecting AC at point G between points C and E.
Since ∠BCG = 80° and ∠CBG = 20°, then ∠BGC = 80° and ΔBCG is an isosceles with BC = BG.
Since ∠BCF = 50° and ∠CBF = 80°, then ∠BFC = 50° and ΔBCF is an isosceles with BC = BF.
Therefore, BC = BG = BF.
Connect points G and F with a line segment.
Since ∠FBG = 60° and BF = BG then ΔBGF is equilateral, so ∠BGF = 60°.
Therefore, BC = BG = BF = GF.
Since ∠ABC = 80° and ∠BCA = 80°, then ∠BAC = 20° and ΔABC is an isosceles with AB = AC.
Since ∠ABG = 60° and ∠GAB = 20°, then ∠BGA = 100°.
As ∠BGA = ∠BGF + ∠FGE, then as ∠BGF = 60°, then ∠FGE = 40°.
Since ∠BGE = ∠BGA = 100° and ∠GBE = 40°, then ∠GEB = 40° and ΔBGE is an isosceles with GB = GE.

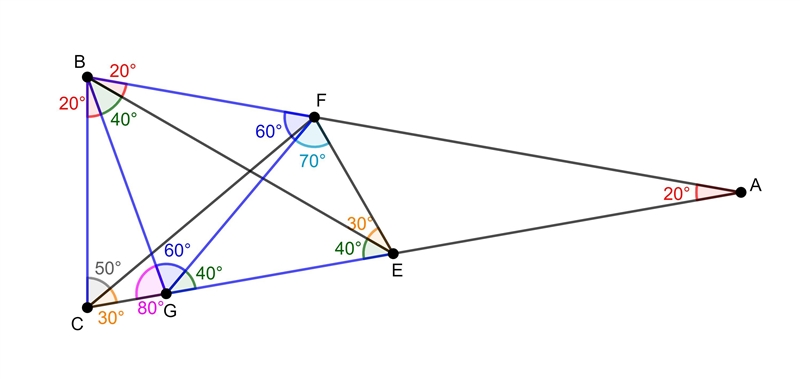

Therefore, all the blue lines in the attached diagram are equal in length.
Since GE = GF, then triangle EFG is an isosceles with its apex ∠FGE = 40°. Therefore, ∠GFE = ∠GEF = (180° - 40°) / 2 = 70°
As ∠GEB = 40° then ∠BEF = 70° - 40° = 30°.
Therefore, x = 30°.
