Select the correct truth table for the following expression:

A • B

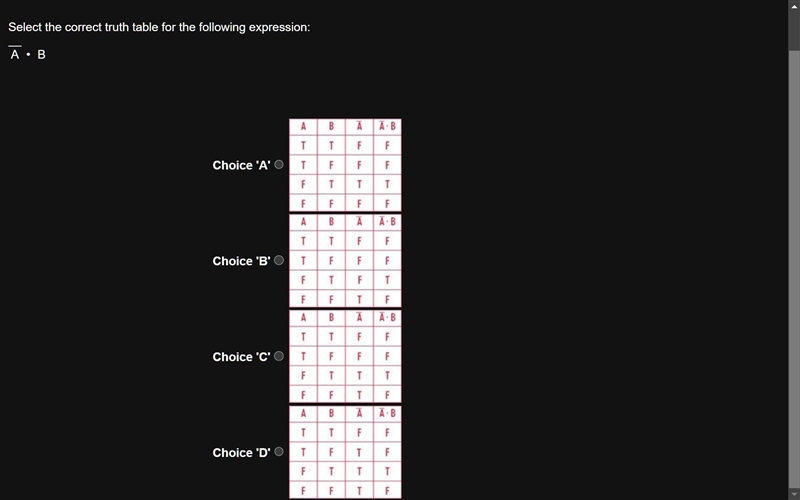

Select the correct truth table for the following expression: A • B-example-1

2 Answers

6 votes

Answer: .

Explanation:

answered
User Matejs
by
8.1k points
6 votes

Answer:

C

Explanation:

You want the truth table that correctly represents A'B.

Truth tables

Each table supposedly shows the values of A' and A'B. A' is correctly represented when each "F" in the A column is replaced by "T" in the A' column, and vice versa. This is only the case for Choice C.

Choice C correctly represents the truth table for A' and A'B.

__

Additional comment

The other choices also correctly represent A'B, but they incorrectly represent A'.
