Question

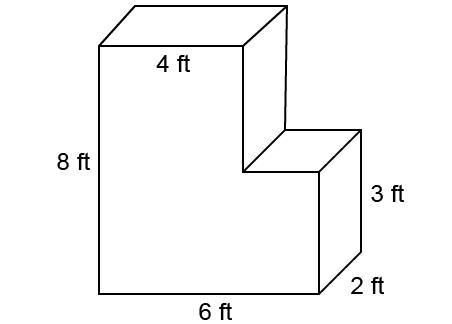

What is the volume of this figure?

Answer 1

The volume of the figure is 76ft³.

Explanation:

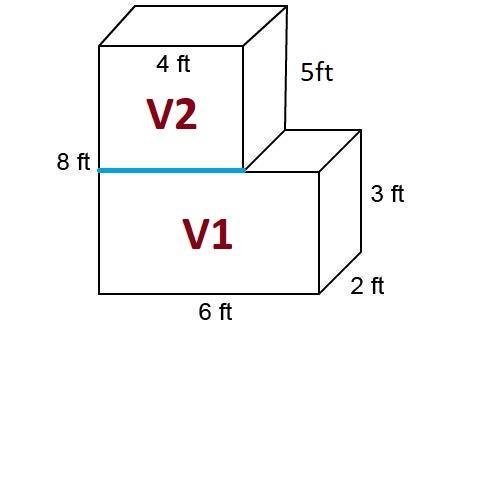

Divide the figure into 2 parts to make it easier to solve for the volume.

V1 = 6ft(2ft)(3ft)

V1 = 36ft³

V2 = 4ft(2ft)(5ft)

V2 = 40ft³

V = V1 + V2

V = 36ft³ + 40ft³

V = 76ft³
