Answers:
Choice A) Segment AC = 2*sqrt(17)
Choice B) Segment BD is 32 units long
Choice F) Segment AB is approximately 33 units long.
==========================================================
Step-by-step explanation:

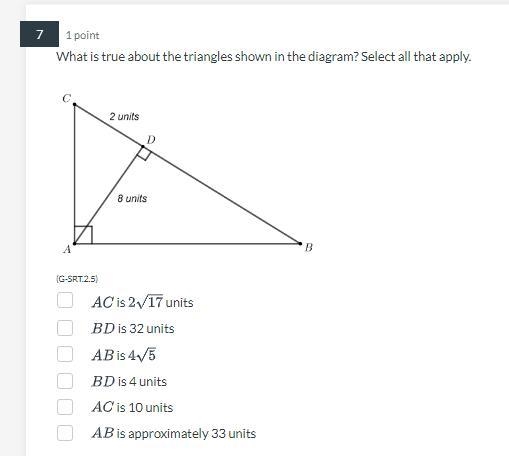

The triangles are similar, so we can form this proportion
CD/DA = DA/BD
2/8 = 8/x
2x = 8*8
2x = 64
x = 64/2
x = 32
BD is 32 units long
This means one of the answers is choice B. It rules out choice D.
--------------
The legs of right triangle ABD are
Use the pythagorean theorem to find hypotenuse AB.
a^2 + b^2 = c^2
(AD)^2 + (BD)^2 = (AB)^2
8^2 + 32^2 = (AB)^2
(AB)^2 = 64 + 1024
(AB)^2 = 1088
AB = sqrt(1088)
AB = sqrt(64*17)
AB = sqrt(64)*sqrt(17)
AB = 8*sqrt(17)
AB = 32.984845
Segment AB is approximately 33 units long.
This tells us another answer is choice F. Choice C is false because 4*sqrt(5) = 8.94427
--------------
BC = BD + DC
BC = 32 + 2
BC = 34
BC is the hypotenuse of triangle ABC
Use the pythagorean theorem to determine AC.
a^2 + b^2 = c^2
(AB)^2 + (AC)^2 = (BC)^2
(sqrt(1088))^2 + (AC)^2 = (34)^2
1088 + (AC)^2 = 1156
(AC)^2 = 1156 - 1088
(AC)^2 = 68
AC = sqrt(68)
AC = sqrt(4*17)
AC = sqrt(4)*sqrt(17)
AC = 2*sqrt(17)
Another answer is Choice A. It rules out choice E because 2*sqrt(17) = 8.2462 approximately.
