Question

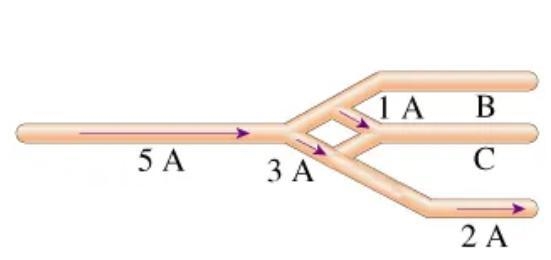

The currents through several segments of a wire object are shown in (figure 1).

Answer 1

The question relates to a high school Physics problem involving circuit analysis and the use of Kirchhoff's rules to determine the currents through various segments of a wire object.

Step-by-step explanation:

The question involves analyzing the currents in different segments of a wire object and is related to the principles of electricity and circuits, suggesting it is a Physics problem. Understanding how current flows through such a system is essential to solving circuit problems and is typically covered in high school physics courses. To determine the currents in various segments of the circuit, one would apply Kirchhoff's rules, which include the junction rule (stating that the sum of currents entering a junction equals the sum of currents leaving) and the loop rule (stating that the sum of the potential differences around any closed loop is zero).

You'd begin by identifying all the junctions in the circuit and applying the junction rule to find the relationships between different currents. Then you'd write equations for each independent loop in the circuit using the loop rule. Solving these simultaneous equations allows you to find the current in each segment of the circuit.

Answer 2

The magnitude of the current
`I_(B)` in segment B is 5 amperes.

The figure shows a simple DC circuit, where the current flows from left to right in wire segment A and then splits into two branches B and C at junction 1.

The ammeter on the left side of the figure measures the total current I, which is 5 amperes.

Since the current is conserved at junction 1, the sum of the currents in branches B and C must be equal to the total current I. In this case, the current in branch B (
`I_(B)`) is 5 amperes.

• The current in branch C (
  `I_(C)`) is 3 amperes.
• The arrow next to
  `I_(B)` and
  `I_(C)` indicates the direction of the current flow.
• The ammeter on the right side of the figure is measuring the current
  `I_(C)` in branch C.

The magnitude of the current
`I_(B)` in segment B can be calculated from the figure showing the currents through several segments of a wire as shown above.
