Question

If you are given three different capacitors, how many different combinations of capacitance can you produce, using all capacitors in your circuits? Draw those circuits

Answer 1

5

Step-by-step explanation:

Let there are three capacitances, C1, C2, and C3.

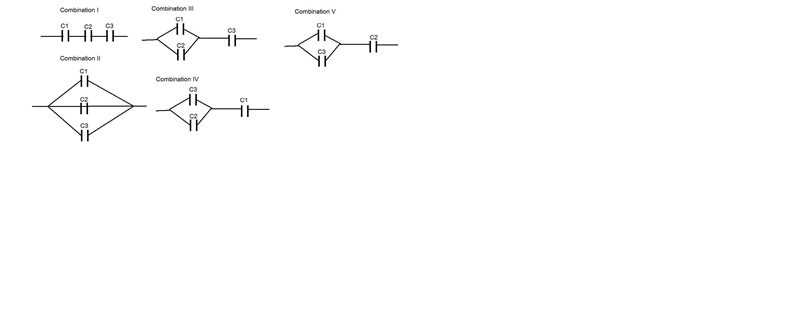

Combination I:

All the three are connected in series combination.

Combination II:

All the three are connected in parallel combination.

Combination III:

C1, C2 are in parallel and then C3 in series.

Combination IV:

C1, C3 are in parallel and then C2 in series.

Combination V:

C3, C2 are in parallel and then C1 in series.
